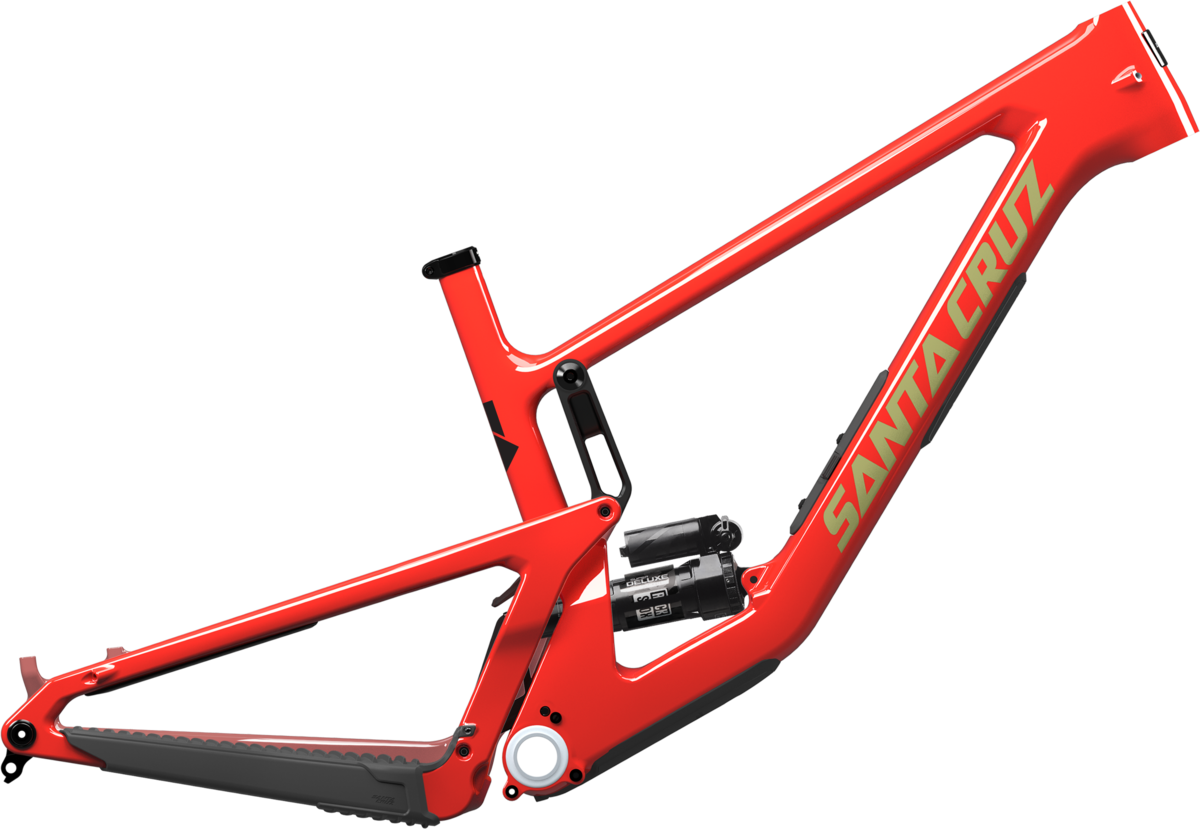

Santa Cruz 5010 CC MX Frame - SDU - Gloss Red - 2023

Santa Cruz 5010 CC MX Frame - SDU - Gloss Red - 2023 68414985

USD $65.00

Color Gloss Red

  • Gloss Red

Size Large

  • Large

Order summary

Santa Cruz 5010 CC MX Frame - SDU - Gloss Red - 2023
65.00
Have a Coupon code?
Coupon code applied will be stored on your account

Subtotal
Shipping calculated at checkout.

OR

Buy With
Details

The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.

Santa Cruz 5010 Features:

  • Fork Travel : 140mm
  • Fork Compatibility : 140mm
  • Frame Travel : 130mm
  • Shock Size : 210x50
  • ICSG-05 Tabs : Yes
  • Headset : Integrated (IS41/52)
  • Seatpost Diameter : 31.6mm
  • Seat Clamp Diameter : 36.4mm
  • BB Shell : 73mm Threaded
  • Max Tyre Size : 2.5"
  • Max Chaingring Size : 36t
  • Shock Mounting Bushing Front : 30x8
  • Shock Mounting Bushing Rear : 30x8
  • Water Bottle Mounts : 1
  • Coil Shock Compatible? : No
  • Adjustable Geometry: Yes, Hi/Lo settings, adjusted with flipchip on link

HIGH

Geometry Chart:
SizeX-SmallSmallMediumLargeX-LargeXX-Large
FLIP CHIP (hi/lo)HIHIHIHIHIHI
REACH (mm)410434459479499524
STACK HT (mm)599608622631649662
ANGLE HT65.265.265.265.265.265.1
LENGTH ST (mm)90100115125145160
ANGLE ST77.477.477.477.177.377.3
ST LENGTH (mm)370380405430460500
REAR CENTER (mm)428430433436439442
FRONT CENTER (mm)719748779803832863
BB HEIGHT (mm)338338338338338338
F/R BB DROP (mm)35/1635/1635/1635/1635/1635/16
WHEELBASE (mm)114711781212123912711305
TT LENGTH (mm)544570598624645673
STANDOVER (mm)694703706708711717



LOW

Geometry Chart:
SizeX-SmallSmallMediumLargeX-LargeXX-Large
FLIP CHIP (hi/lo)LOLOLOLOLOLO
REACH (mm)406431456476496521
STACK HT (mm)601610624633651664
ANGLE HT64.964.964.964.964.964.9
LENGTH ST (mm)100100115125145160
ANGLE ST75.977.177.176.87777.1
ST LENGTH (mm)370380405430460500
REAR CENTER (mm)429431434437440443
FRONT CENTER (mm)718748779803832863
BB HEIGHT (mm)335335334334334335
F/R BB DROP (mm)38/1938/1938/1938/1938/1938/19
WHEELBASE (mm)114711781213124012711306
TT LENGTH (mm)544571599625646674
STANDOVER (mm)688698700703706712
