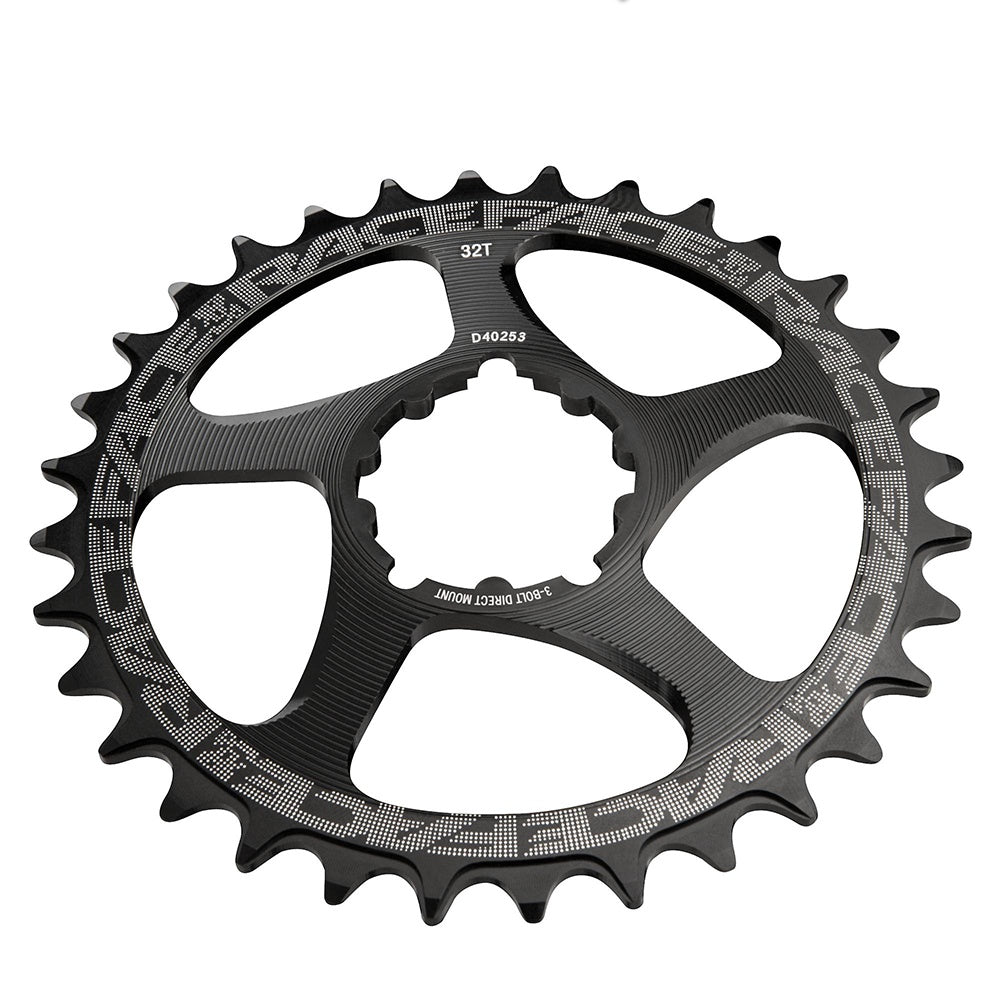

Race Face Direct Mount Chainring 3-Bolt

Race Face's new Direct Mount Single ring. Designed and machined in our Vancouver, BC facility, tested on the North Shore and in the Whistler Bike Park.

Race Face Direct Mount rings deliver substantial weight saving compared to a standard SRAM chainring and spider combo. And with added benefit of Narrow/Wide tooth configuration.

Features:

• Narrow Wide tooth profiling ensures ultimate chain retention
• Fits SRAM GXP cranks with the removable spider
• Replaces your existing chainring and spider which is attached via 3 bolts on the back of the spider
• Remove spider and simply use these same 3 bolts to re-attach the Race Face DM ring
• 7075-T6 aluminum, aerospace grade strength
• Stiff 4mm plate thickness to transfer loads without flexing
• Compatible for 9, 10 and 11 speed

Features:

• Compatible with Sram cranksets with a removable spider
• Narrow Wide tooth profiling ensures ultimate chain retention
• 7075-T6 aluminum, aerospace grade strength
• Stiff 4mm plate thickness to transfer loads without flexing
• Compatible for 9, 10, 11 and 12 speed*

SRAM, GXP, and Truvativ are trademarks of SRAM and are used for informational purposes only.

Specification:

• Sizes: 26, 28, 30, 32, 34, 36
• Built for: XC/Trail/AM
• Compatable with:
• SRAM X9, X0, XX1
• Truvativ AKA cranks
• SRAM S1400
• S2200
• S2210
• GXP
• Newer S1400 (or X7) cranksets will also work with RF DM rings
• Weight: 38g (26T) - 76g (36T)
• Colour: Black

*Please note: Not compatible with with Shimano 12 speed chains.
