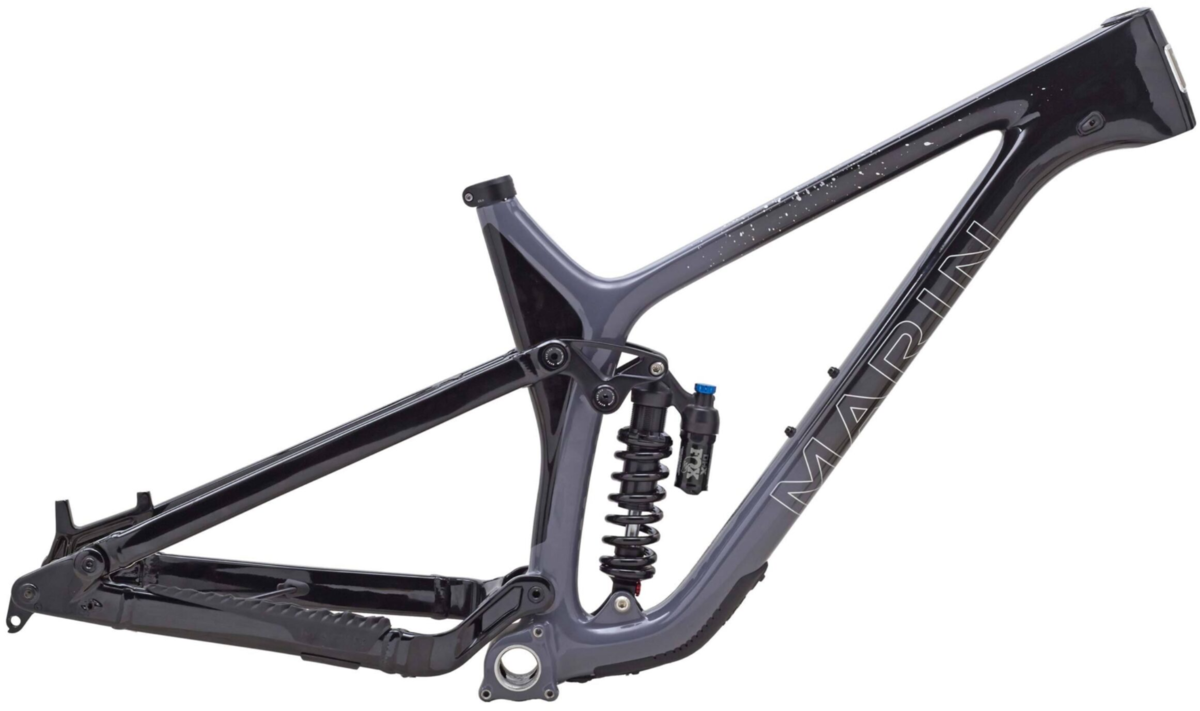

Marin Rift Zone CXR 29 Frame Kit - Gloss Gray - 2024



The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29" wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

Specifications:

  • Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Rear Shock Fox Factory Series Coil, Coil Spring, Climb Switch, Rebound & Compresion Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
  • Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Accessories & Extras Marin MTB Seat Clamp, Bolt Type
  • Bolt-On Thru-Axle
  • Downtube Protector

* Subject to change without notice.


Geometry Chart:
SizeSmallMediumLargeX-Large
STACK (A) (mm)605.64610.32614.92619.6
REACH (B) (mm)425.72450.74475.84510.97
HEADTUBE ANGLE (C)65.1°65.1°65.1°65.1°
HEADTUBE LENGTH (D) (mm)100105110115
SEATTUBE ANGLE (E)76°76°76°76°
SEATTUBE LENGTH (F) (mm)390400425430
TOPTUBE EFFECTIVE (G) (mm)576.72602.91629.16665.44
BB HEIGHT (H) (mm)347347347347
BB DROP (I) (mm)31313131
CHAINSTAY (J) (mm)425425425425
WHEELBASE (K) (mm)1164.8991191.971219.121259.11
STANDOVER HEIGHT (L) (mm)648655664667
FORK OFFSET (M) (mm)44444444
SEATPOST DIAMETER (mm)30.930.930.930.9
HANDLEBAR WIDTH (mm)780780780780
STEM LENGTH (mm)35353535
CRANK LENGTH (mm)170175175175
