INSPIRED BY ADVENTURE, THE 951 E-XPLORE IS UNLIKE ANY OTHER EBIKE YOU'VE RIDDEN. BUILT ON 27.5" WHEELS AND WITH A CUSTOM RACK AND BAG SET, THIS BIKE IS READY FOR THE ULTIMATE ADVENTURE.

QUICK STANDOUTS

• TRAVEL (FRONT/REAR): 160mm/140mm
• WHEEL SIZE: 27.5"
• TOTAL WEIGHT: 67lbs 9.6oz (Size SM/MD includes pedals, handlebar bags, rear rack, pannier bags, headlight, and tubes), 61lbs 12.8oz (Size SM/MD with pedals, rear rack, and tubes only)
• MOTOR/BATTERY: Shimano E7000 STEPS Motor, BT-E8035 504Wh Battery
• HEADTUBE ANGLE: 65.25 °
• REACH: 447mm or 17.6" (SM/MD) / 502mm or 19.8" (LG/XL)

READY FOR ANY ADVENTURE.
This bike has everything you need to explore farther, faster, and be more prepared. On the front, it has Acerbis handguards to protect you from any rocks or branches you might encounter; the rear has a custom INTENSE rack that holds two rear pannier bags as well as a bungee drawcord to secure any extra items for your trip. Front and rear fenders come standard, and a kickstand; this bike is ready to go.

OUTSTANDING POWER AND INTELLIGENT BATTERY SYSTEM
The E-XPLORE is engineered to deliver an unparalleled riding experience with its outstanding power and torque capabilities. Equipped with the Shimano E7000 motor paired with a 504Wh battery, you can effortlessly conquer challenging terrains and steep climbs. This system works harmoniously, so you can confidently embark on long rides and discover the thrill of adventure.

SUPERIOR CONTROL WITH DVO SUSPENSION AND TRP BRAKES.
Equipped with DVO's cutting-edge suspension system to ensure a smooth and controlled ride over varied terrains. Whether navigating rocky descents or tackling technical climbs, the DVO Suspension excels at absorbing bumps and impacts, allowing you to maintain control and confidence on the trail. The high-performance TRP Trail Evo brakes are engineered to meet the demands of aggressive trail riding. With their precise modulation and unparalleled braking performance, you can handle all conditions.

SPECIFICATIONS 951 SERIES E-XPLORE

• FRAME: E-XPLORE Performance Alloy Frame. Alloy top link, internal shift, dropper post, brake, display unit routing, e*Spec Chainguide mount pattern, flak guard armor, integrated mud guard, 160mm front travel, 140mm rear travel
• FORK: DVO Diamond E3 27.5", 160mm, 44mm rake

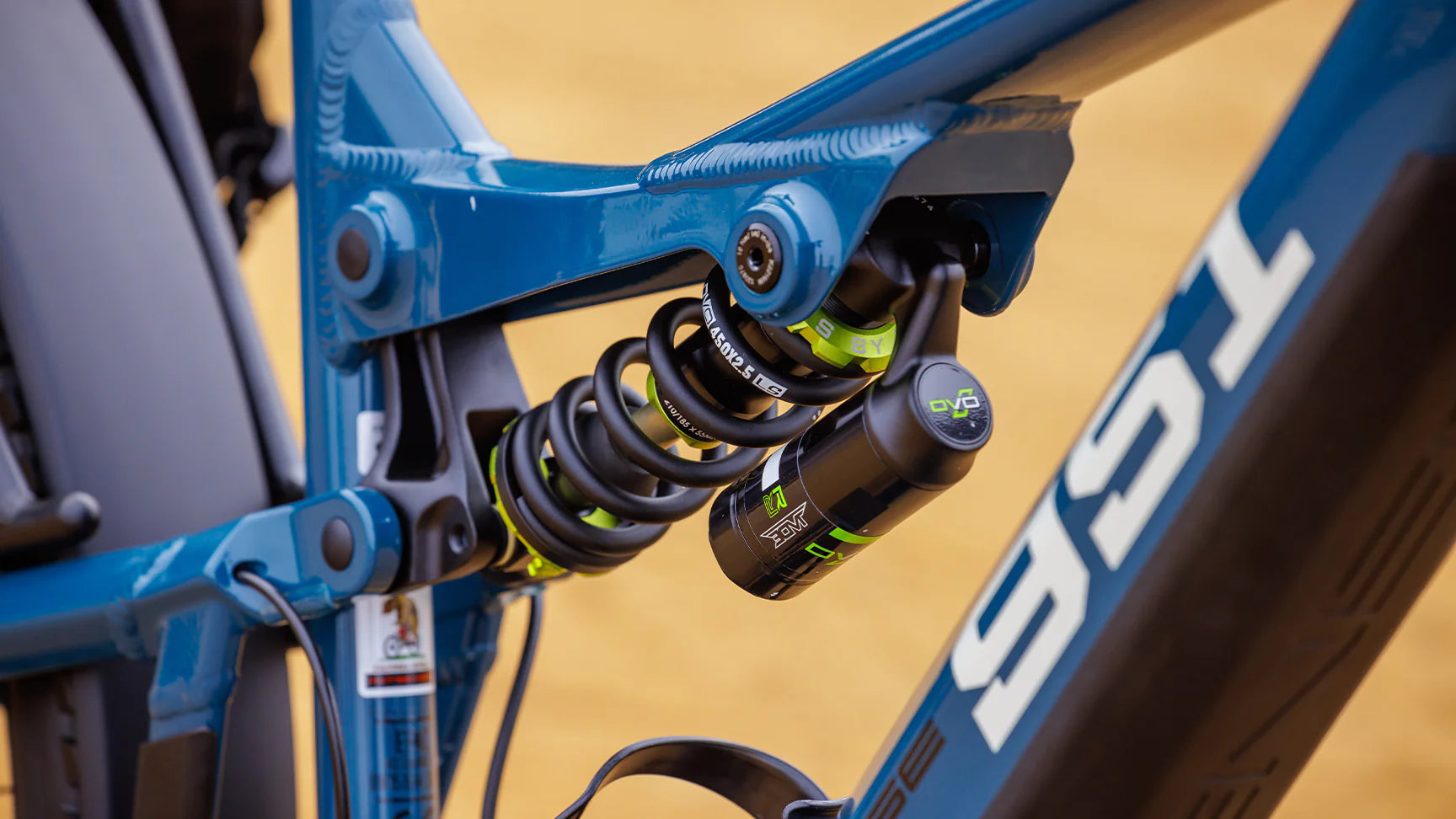

• REAR SHOCK: DVO Jade R Coil, 185x55mm, 450lbs (SM/MD) / 550lbs (LG/XL)
• HEADSET: INTENSE ZS49/ZS56
• STEM: INTENSE Recon 35 / 45mm
• HANDLEBARS: INTENSE Recon Alloy 35, 800mm width, 30mm Rise
• GRIPS: INTENSE Lock-on
• BRAKES: TRP Trail EVO, HD-M843, Front/Rear
• ROTORS: TRP 203mm. Front/Rear
• SHIFTER: Shimano Deore SL-M5100, 11 speed
• DERAILLEUR: Shimano Deore RD-M5100, 11 speed

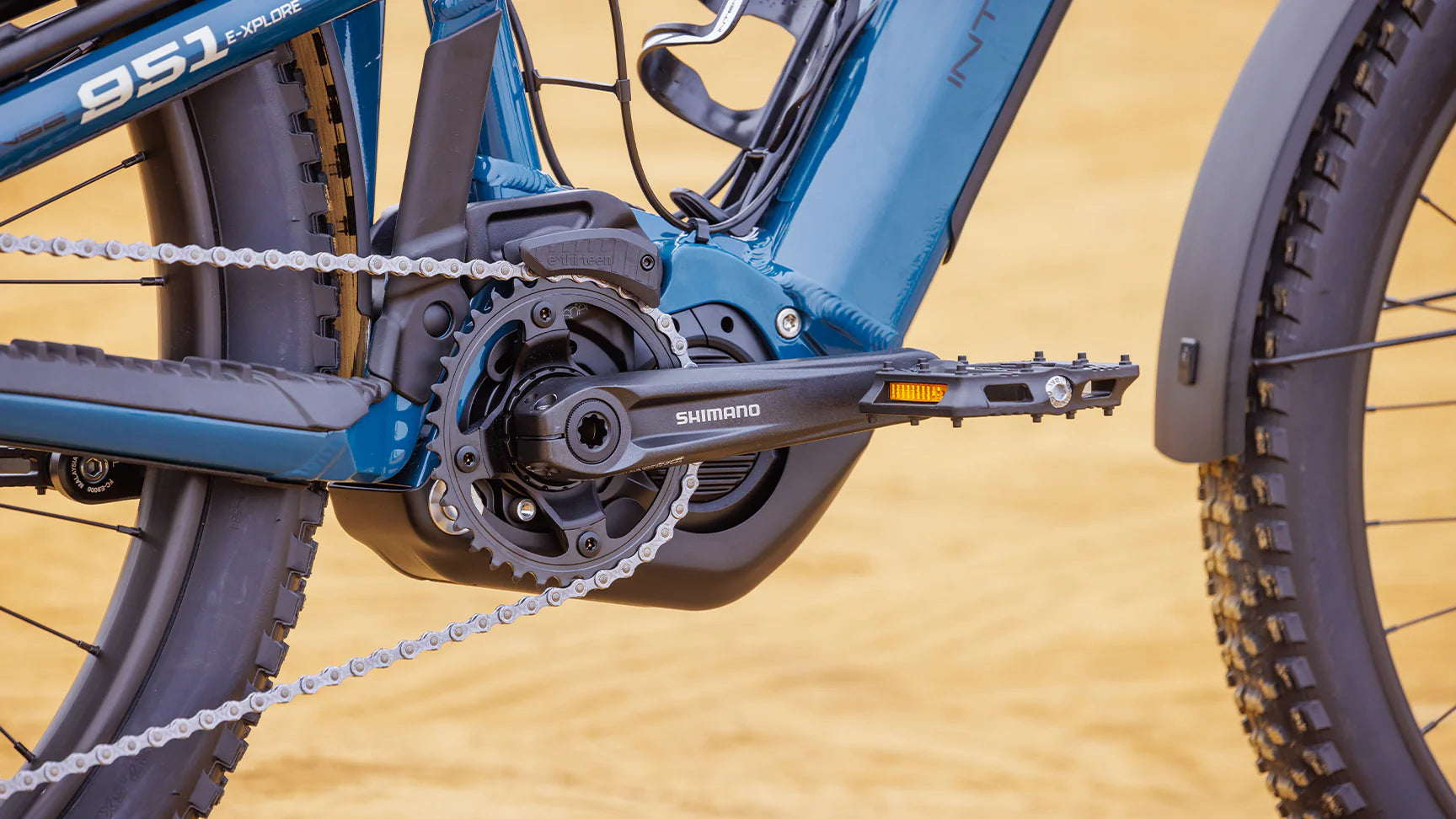

• CRANKS / CHAINRING: Shimano FC-E8000 165mm, 34t

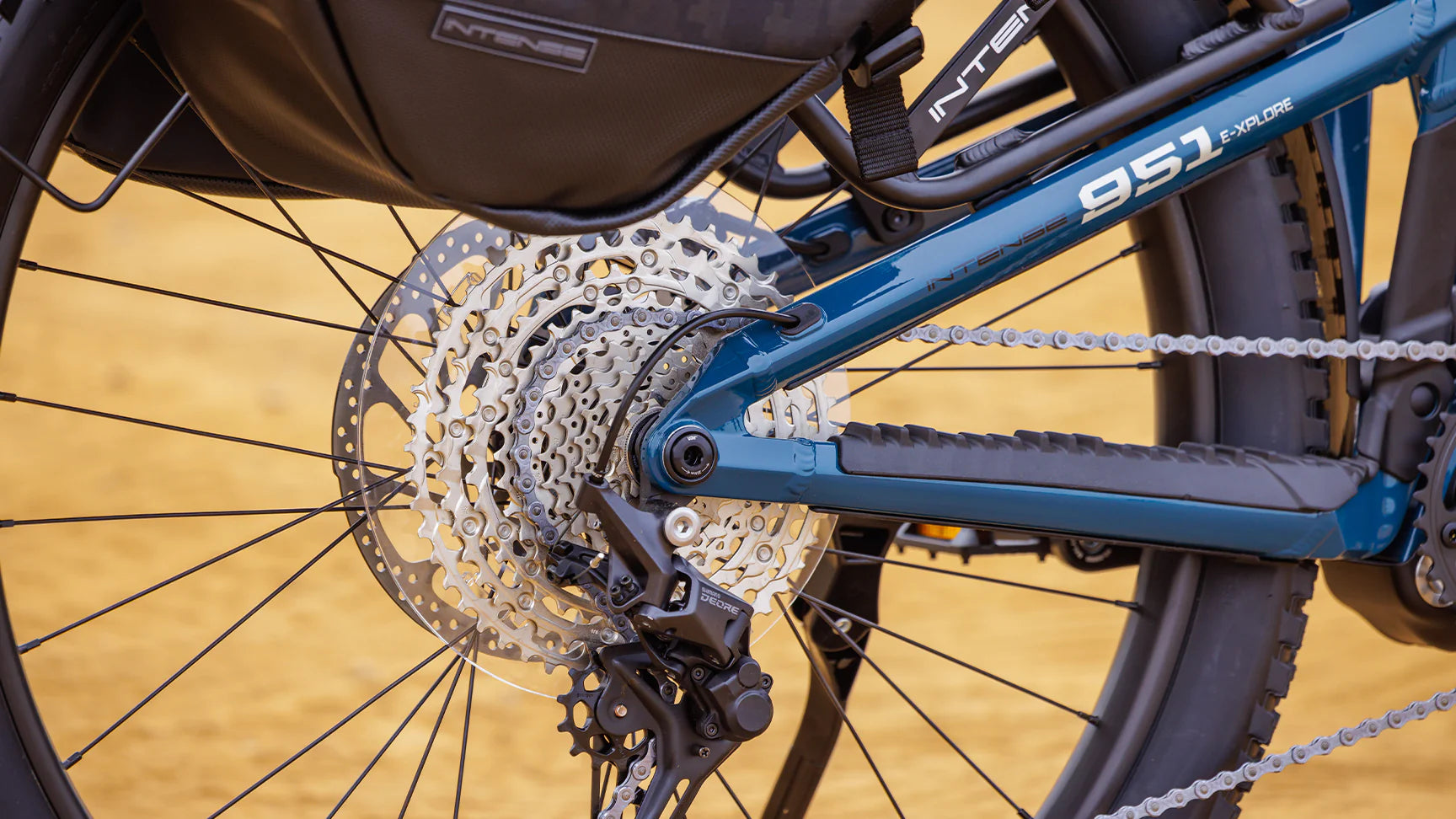

• CASSETTE: Shimano Deore CS-M5100, 11 speed, 11-51t
• CHAIN: KMC E 11 speed
• HUBS: INTENSE E-MTN Alloy Hubs
• SPOKES: DT-Swiss Champion
• WHEELS: 27.5" WTB ST i35 TCS 35mm Aluminum, 110x15mm Front / 27.5" WTB ST i35 TCS 35mm Aluminum, 148x12mm Rear
• TIRES: MAXXIS Rekon 3C EXO+ Tubeless-ready, 27.5" x 2.80" Front/Rear
• SEATPOST: INTENSE Recon Dropper 31.6mm, 125mm Travel (SM/MD), 150mm Travel (LG,XL)
• SADDLE (SEAT)l WTB Volt
