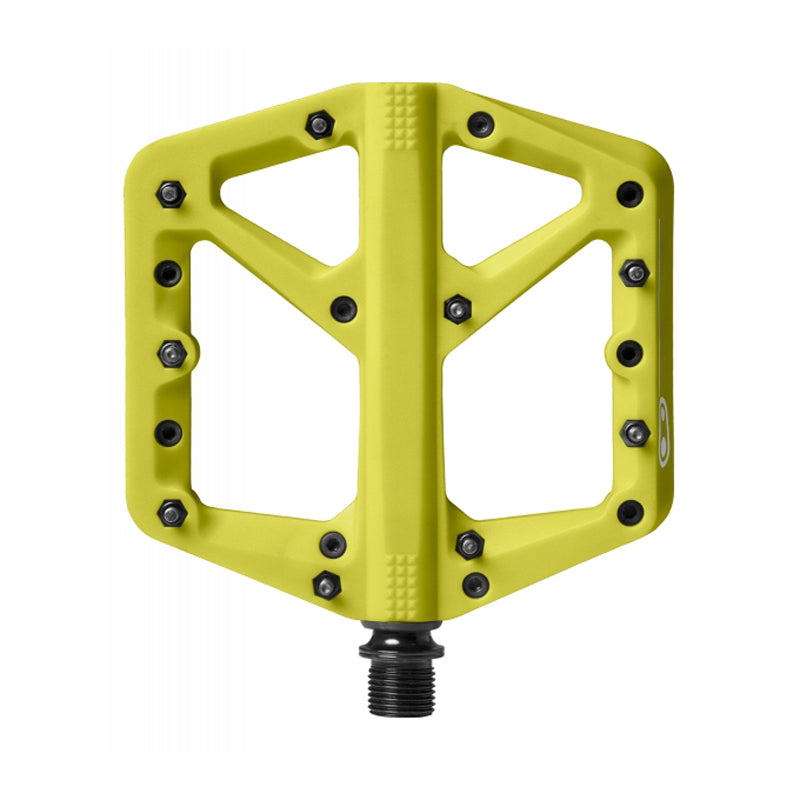

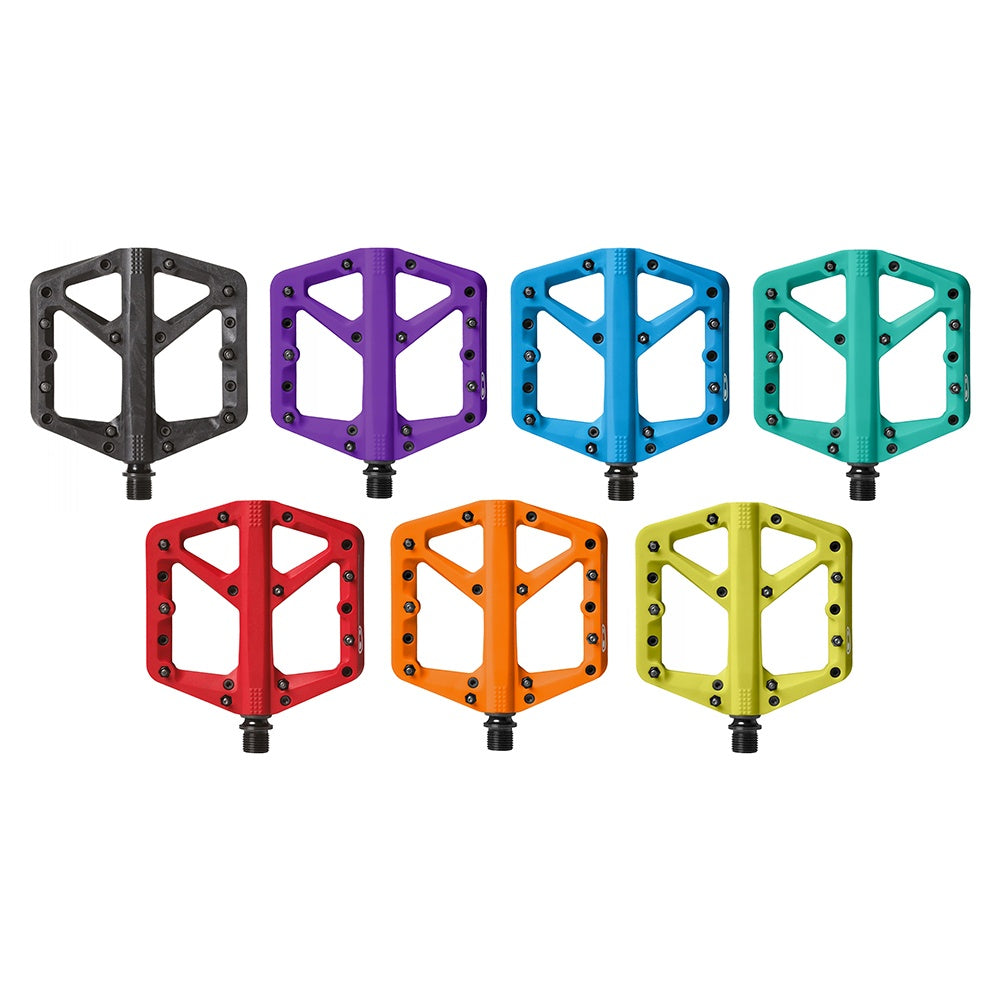

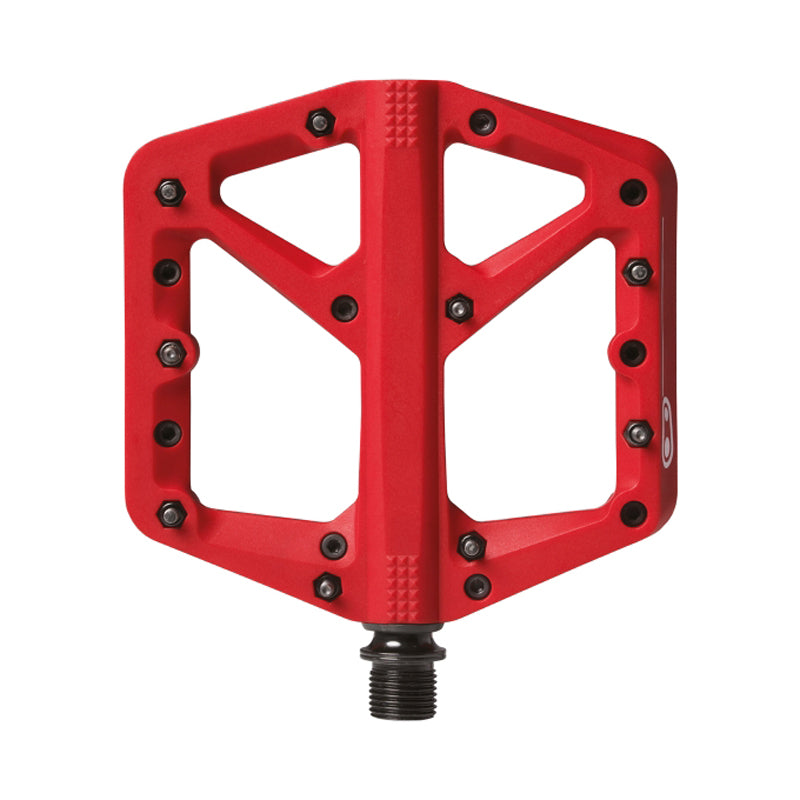

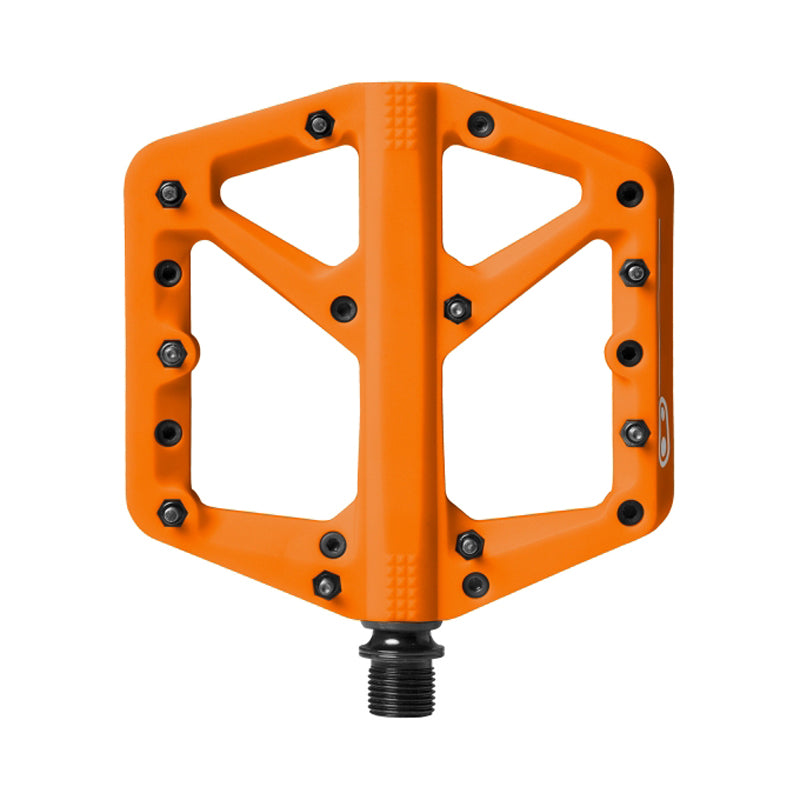

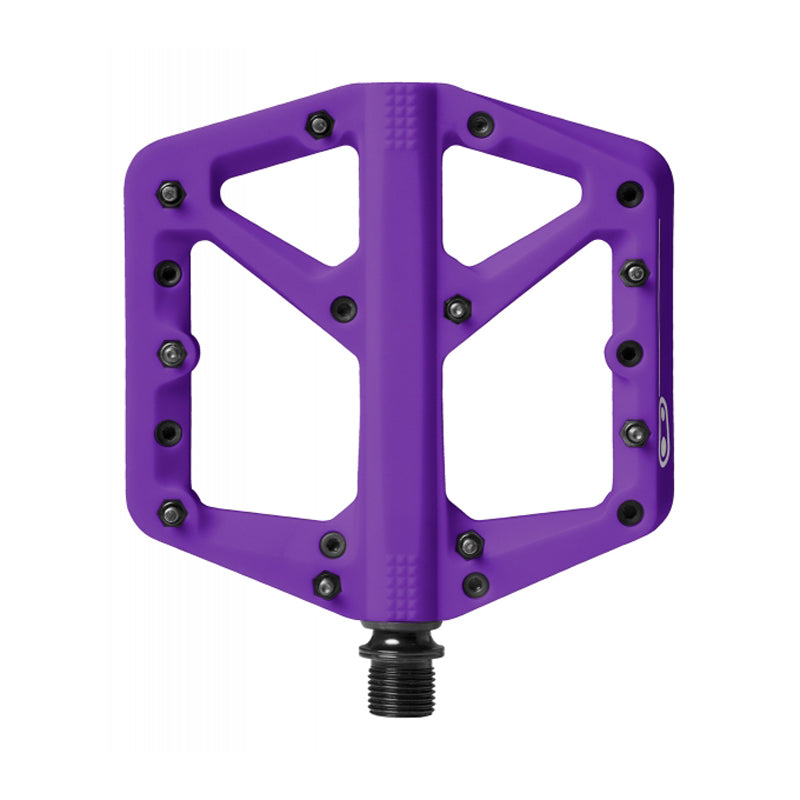

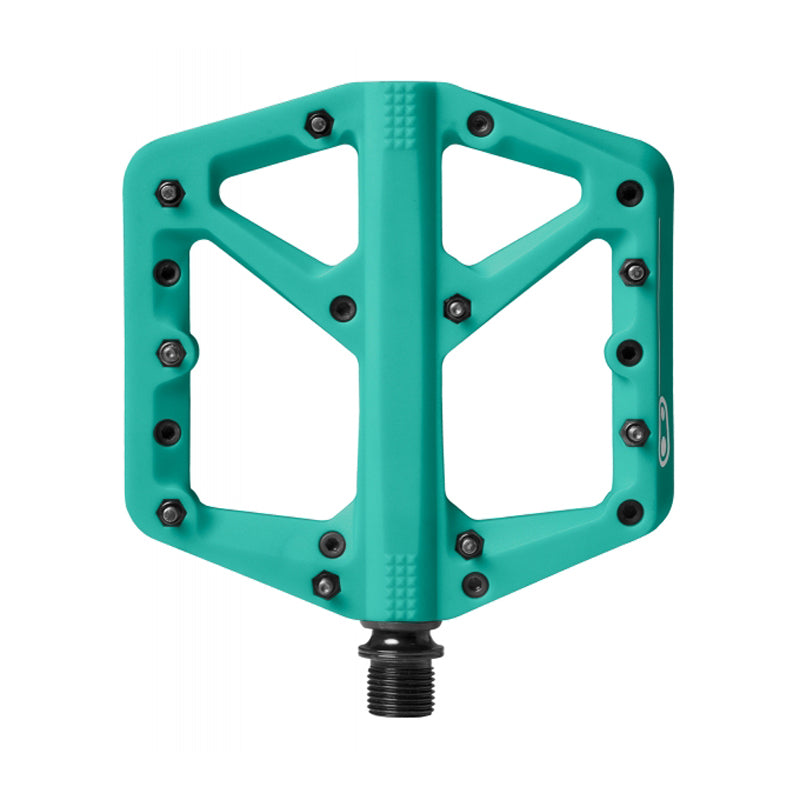

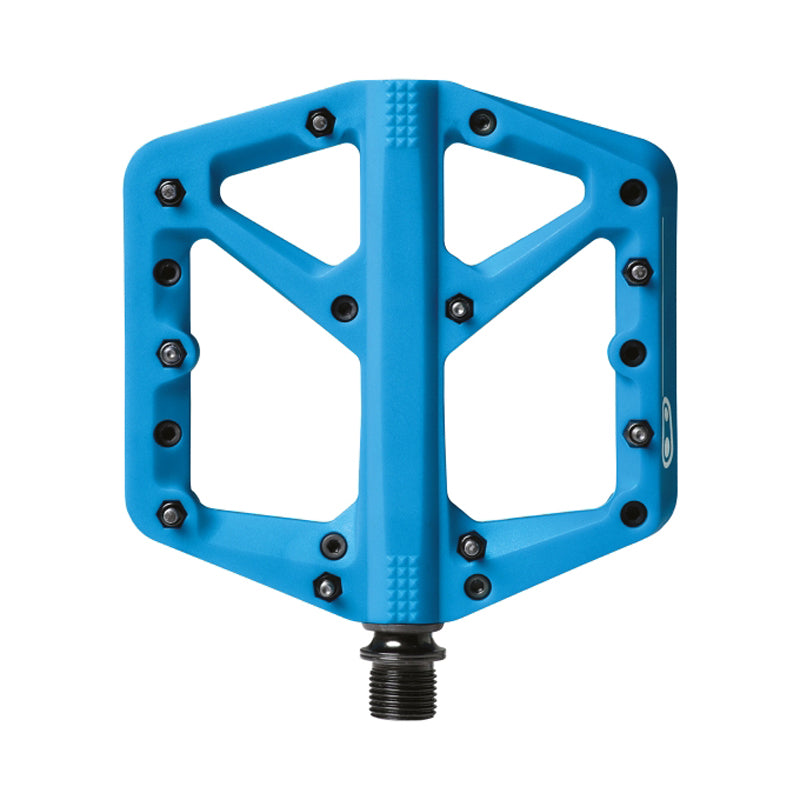

Crank Brothers Stamp 1 Pedals

The flat pedal from Crank Brothers is engineered to provide the optimal interface between shoe and pedal.

The outsole profiles of the top mountain bike show brands were analysed and the data used to create two distinct surface areas to optimise shoe/pedal contact across all of these different models. The small is designed for EU shoe sizes from 37-43, and 43-49 for large. Once the optimal sizes had been established the features required for the ideal flat pedal were also incorporated.

Level 1 stamp pedals use the same axle and premium internal components as the Crank Brothers clip-in range of pedals allowing for ease of service and maintenance.

Features:

• Composite body
• 18 adjustable pins per pedal. 8mm in the centre of the pedal and 10mm on the outer edges.
• Outer enduro cartridge bearing is designed specifically for pedals. Enduro use superior materials, grease and sealing on their bearings which are designed especially for use on a bike.
• Inner igus LL-glide bearing has been exclusively formulated for Crank Brothers. It performs in even the most adverse conditions out on the trails.
• Double seal system combines a double lip internal seal and a new external seal to keep water and debris from entering the pedal.
• Crank Brothers pedals are fully re-buildable for simple maintenance. There is a consistency in parts across all pedal models, which allows for ease of servicing, this is easily done using the pedal refresh kit (CRB-16051).
• 13mm profile

Specification

• Weight: 299g (Small), 329g (Large)
• Spindle: Forged scm 435 chromoly steel
• Body: Composite
• Inner bearing: Igus LL-glide bearing
• Outer bearing: Enduro cartridge bearing
• Body dimensions: 100mm x 100mm (Small), 114mm x 111m (Large)
• Pins: 9 adjustable pins per side
• Warranty: 5 years

Small size fits EU 37 - 43

Large Size fits EU 43 - 49
